How to manage items with the REST API

What you’ll learn

The ERP REST item endpoints let an external system create and update CRIBWISE items in bulk, one JSON array per call. This article lists the three item endpoints, documents every field the item payload accepts, and shows how to read the result of a write that CRIBWISE has queued.

Paths on this page are relative to [AP_base_uri], the host your Admin Portal runs on without the portal path. Every call needs a bearer token – see How to authenticate with the REST API.

---

The item endpoints at a glance

Method	Endpoint	Body	Answers with
POST	/ERP/ReceiveItems/Create	An array of item objects	A request GUID. The items are created in the background.
POST	/ERP/ReceiveItems/Update	An array of item objects, each with at least an Id	A request GUID. The changes are applied in the background.
GET	/ERP/ReceiveItems/GetRequestResult	None. Takes requestGuid as a query parameter	The status of that request and the IDs it created or updated.

All three endpoints work on the same item contract, so a payload you can create with is also a payload you can update with. The difference is which fields are mandatory.

---

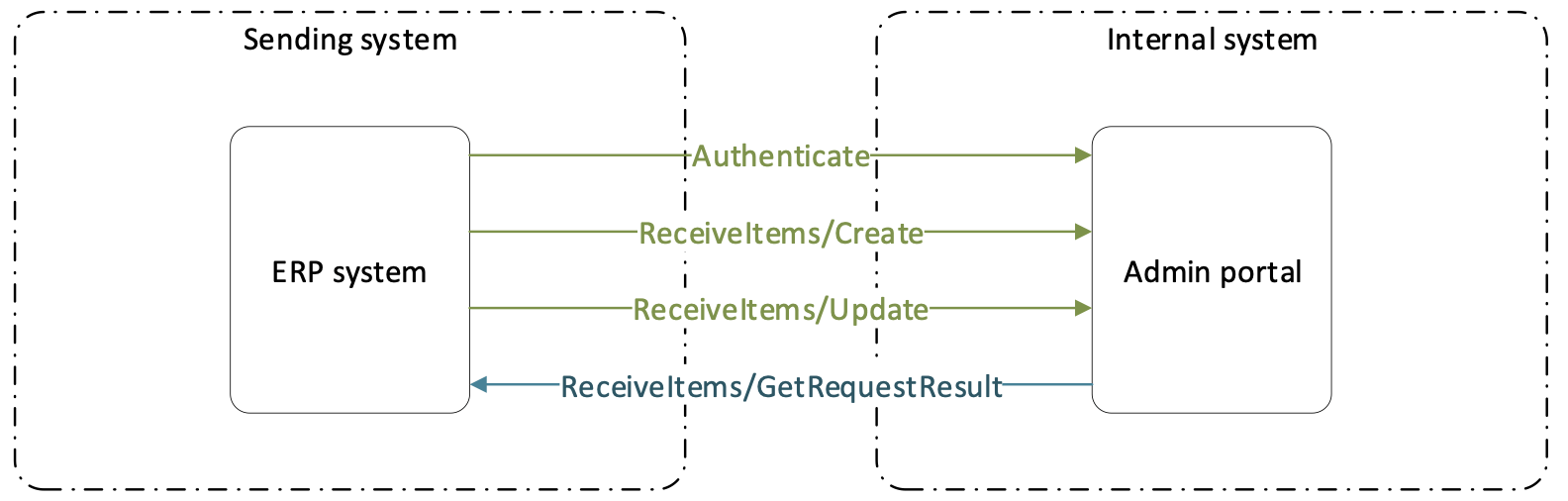

How an item call works

A write travels through three stages. The response you get back covers only the first two.

1. Authenticate. Exchange your API key for a bearer token and send it as an Authorization: Bearer header on every call.
2. Send the items. Post the array to Create or Update. CRIBWISE validates that the body parses, queues the work, and answers 200 with a request GUID as a plain string.
3. Collect the result. Pass that GUID to GetRequestResult to find out whether the queued work succeeded.

The ERP system drives all four calls. CRIBWISE never calls back.

Important: Treat a 200 as “queued”, not as “done”. Business validation runs when the queued job executes, so an integration that stops at stage 2 silently misses every rejected item.

---

Create items

POST [AP_base_uri]/ERP/ReceiveItems/Create

The body is an array, so one call can create many items. Eight fields are mandatory on every object: Id, Name, Description, Type, Status, Classification, UsageCostStructure, and Cost.

Any field that points at another record – a vendor, a manufacturer, an alternative item, a spare part – must name an ID that already exists. Create the vendor and the manufacturer first; see ERP REST Vendors and How to create manufacturers with the REST API.

Example create request

[
  {
    "Id": "5725474",
    "Name": "CNMG 19 06 12-MM 2025",
    "Description": "T-Max P, insert for turning",
    "Type": "Consumable",
    "Status": "Released",
    "Classification": "C",
    "UsageCostStructure": "PercentageOfStandardCost",
    "Cost": 100,
    "VendorId": "SANDVIK-COROMANT",
    "VendorOrderCode": "CNMG 19 06 12-MM 2025",
    "PricePerPiece": 12.5,
    "PurchasePackageQuantity": 10,
    "DispensePackageQuantity": 1,
    "Category": ["Turning", "Inserts"]
  }
]

This item is created as Released rather than Defined, which is why the purchasing fields are present: as soon as an item leaves Defined, CRIBWISE requires VendorId, VendorOrderCode, PricePerPiece, and PurchasePackageQuantity.

Example create response

"3f2504e0-4f89-11d3-9a0c-0305e82c3301"

The response is the request GUID as a JSON string, not an object. Keep it – it is the only way to find out what happened.

---

Update items

POST [AP_base_uri]/ERP/ReceiveItems/Update

The update endpoint takes the same item contract, but only Id is mandatory and Id itself cannot be changed. Send just the fields you want to change; anything you leave out keeps its current value.

Three rules decide what a value does:

• A field with a value sets that value.
• A field sent as null or as an empty string clears the value.
• A field left out of the payload is untouched.

The SpareParts and AssemblyItems arrays follow their own version of the same rule. Leaving the array out keeps the current list, sending a filled array replaces the list, and sending an empty array removes every entry.

Warning: "SpareParts": [] deletes every spare part relation on the item. Serializers that emit empty arrays for empty collections will wipe these lists on every update.

Example update request

[
  {
    "Id": "5725474",
    "CriticalLevel": 20,
    "PricePerPiece": 13.75,
    "BarCode": ""
  }
]

This call raises the critical level, sets a new price, and clears the barcode. Every other field on the item is left alone.

---

Item field reference

The table covers both endpoints. On create and On update give the rule for the same field in each call, so you do not have to compare two lists.

String lengths are the maximum the system accepts. Numbers are integers unless the type says otherwise.

Field	Type	On create	On update	Notes
Id	string, 50	Required	Required, cannot be changed	Selects the item to update. Must be unique across the system.
Name	string, 100	Required	Optional
Description	string, 400	Required	Optional	Sets the description in the default language. Additional languages cannot be set through this interface.
Type	enum: Consumable, Durable	Required	Only while Status is Defined
Status	enum: Defined, PhaseIn, Released, PhaseOut, Obsolete	Required	Optional	Cannot be set back to Defined.
Classification	enum: A, B, C	Required	Optional	The item’s own ABC classification.
UsageCostStructure	enum: PercentageOfStandardCost, FixedPerPick, PerTimeInCa, PerItemState	Required	Optional	Must be PercentageOfStandardCost when Type is Consumable.
Cost	decimal	Required	Optional	Must be 100 when Type is Consumable.
CategoryId	string, 50	Optional	Optional	When sent, Category is ignored.
Category	array of string, 100 each	Optional	Optional	Category names in hierarchy order, within the item’s own category tree. Ignored when CategoryId is sent.
GtcClassification	string, 50	Optional	Optional
BarCode	string, 50	Optional	Optional
CriticalLevel	integer	Optional	Optional
AlternativeItemId	string, 50	Optional	Optional	Must point to an item that already exists.
IsQuoted	boolean	Optional	Optional	Earlier versions of this page spelled the field IsQouted. The contract uses IsQuoted.
IsSerialized	boolean	Optional	Only while Status is Defined	true only when Type is Durable.
IsAssembly	boolean	Optional	Optional	true only when Type is Durable.
DispensePackageQuantity	integer	Optional	Optional
DispenseUnit	string	Optional	Optional	A unit name from the Dispense unit of measure list, such as pieces.
DispenseUnitRatio	integer	Optional	Optional	Goes with DispenseUnit.
VendorId	string, 50	Required once Status is not Defined	Cannot be cleared once Status is not Defined	Must point to a vendor that already exists. Not available on assemblies.
VendorOrderCode	string, 50	Required once Status is not Defined	Cannot be cleared once Status is not Defined	Not available on assemblies.
PricePerPiece	decimal	Required once Status is not Defined	Cannot be cleared once Status is not Defined	Not available on assemblies.
PurchasePackageQuantity	integer	Required once Status is not Defined	Cannot be cleared once Status is not Defined	Not available on assemblies.
PurchaseUnit	string	Optional	Optional	A unit name from the Purchase unit of measure list.
PurchaseUnitRatio	integer	Optional	Optional	Goes with PurchaseUnit.
LeadTimeUnits	enum: Months, Weeks, Days, Hours	Required when LeadTimeValue is sent	Cannot be cleared while LeadTimeValue is set	Not available on assemblies.
LeadTimeValue	integer	Required when LeadTimeUnits is sent	Cannot be cleared while LeadTimeUnits is set	Not available on assemblies.
ManufacturerId	string, 50	Optional	Optional	Must point to a manufacturer that already exists. Not available on assemblies.
ManufacturerOrderCode	string, 50	Optional	Optional	Not available on assemblies.
TimeSpecificationUnit	enum: Months, Weeks, Days, Hours	Required when UsageCostStructure is PerTimeInCa	Cannot be cleared while UsageCostStructure is PerTimeInCa	Cannot be sent with any other UsageCostStructure.
TimeSpecificationValue	integer	Required when UsageCostStructure is PerTimeInCa	Cannot be cleared while UsageCostStructure is PerTimeInCa	Cannot be sent with any other UsageCostStructure.
HasServiceOrCalibration	boolean	Optional	Optional	true only when Type is Durable.
ServiceCalibration	object	Required when HasServiceOrCalibration is true	Required while HasServiceOrCalibration is true	See Service and calibration below.
HasValueAddedServices	boolean	Optional	Optional
ValueAddedServices	object	Required when HasValueAddedServices is true	Required while HasValueAddedServices is true	See Value added services below.
SpareParts	array of objects	Optional	Optional, replaces the whole list	See Spare parts and assembly items below.
AssemblyItems	array of objects	Optional	Optional, replaces the whole list	Only on an item with IsAssembly set to true.
CustomFields	object	Optional	Optional	See Custom fields and categories below.
HasSpecialHandling	boolean	Optional	Optional	Matches Special handling for restock and return in the item detail.

Note: DispenseUnit, DispenseUnitRatio, PurchaseUnit, PurchaseUnitRatio, and HasSpecialHandling are in the live item contract but were absent from this page until this revision. They are documented here from the matching fields in the item detail. Confirm them against your own installation before an integration depends on them.

Service and calibration

The ServiceCalibration object is read only when HasServiceOrCalibration is true, which in turn is allowed only on a durable item.

Field	Type	Required	Notes
ServiceVendorId	string, 50	Required	The technical vendor. Must point to a vendor that already exists.
ServiceCode	string, 50	Required
ServicePrice	decimal	Required	Not available on assemblies.
TimeInterval	object: Hours, Days, Weeks (integer)	Optional	Only when IsSerialized is true.
DueDate	date and time, ISO 8601	Optional	Only when IsSerialized is true.
TimeAfterFirstUseUnit	enum: Months, Weeks, Days, Hours	Optional	Only when IsSerialized is true.
TimeAfterFirstUseValue	integer	Required when TimeAfterFirstUseUnit is sent
LeadTimeUnit	enum: Months, Weeks, Days, Hours	Optional	The lead time of the service, not of the purchase.
LeadTimeValue	integer	Required when LeadTimeUnit is sent
NumberOfTimesUsed	integer	Optional	Only when IsSerialized is true.
TimePicked	object: Hours, Days, Weeks (integer)	Optional	Only when IsSerialized is true.
MinQuantityForService	integer	Optional

The contract itself marks only ServiceVendorId and ServiceCode as required. The other rules in this table are business validations, applied when the queued job runs rather than when the request is accepted.

Value added services

The ValueAddedServices object is read only when HasValueAddedServices is true.

Field	Type	Required	Notes
Code	string, 100	Required when HasValueAddedServices is true
TypeCode	string, 3	Required when HasValueAddedServices is true
Content	string, 60	Optional

Spare parts and assembly items

Both arrays hold objects with the same three properties. SpareParts lists the parts that belong to an item; AssemblyItems lists the components of an assembly.

Field	Type	Required	Notes
SparePartId	string, 50	Required in every SpareParts object	Must point to an item that already exists.
AssemblyItemId	string, 50	Required in every AssemblyItems object	Can point only to items with IsAssembly set to false.
Quantity	integer	Required in every object
Positions	string, 50	Required in every object	Earlier versions of this page called this field Position in the spare part list. The contract uses Positions in both arrays.

Custom fields and categories

CustomFields is an object of name and value pairs, not an array. Each name must match a custom field defined in system settings, and up to three can be set. A name the system does not recognise is ignored without an error, and on update a custom field you do not send keeps its value. Values are strings of up to 400 characters. See Custom fields.

Category is an array of category names, in hierarchy order from the top down, within the item’s own category tree. Send CategoryId instead when you already know the ID – when both are present, Category is ignored.

---

Where the fields appear in the Admin Portal

Every field in the payload writes a box in the item detail, under Data management > Items > View detail. Use these two screens to check what a call actually did.

General information tab

The General information tab of item 5725474.

#	Field in the Admin Portal	Field in the payload
1	Item ID	Id
2	Name	Name
3	Description	Description
4	Consumable / Durable, Serialized, Assembly, Quoted	Type, IsSerialized, IsAssembly, IsQuoted
5	Own classification	Classification
6	Own category	CategoryId or Category
7	GTC classification	GtcClassification
8	Status	Status
9	Dispense unit of measure	DispenseUnit
10	Critical level	CriticalLevel
11	Dispense package quantity	DispensePackageQuantity

Supplier tab

The Supplier tab of the same item.

#	Field in the Admin Portal	Field in the payload
1	Vendor	VendorId
2	Order code	VendorOrderCode
3	Purchase price	PricePerPiece
4	Barcode	BarCode
5	Purchase unit of measure	PurchaseUnit
6	Purchase package quantity	PurchasePackageQuantity
7	Lead time	LeadTimeValue and LeadTimeUnits
8	Manufacturer	ManufacturerId
9	Manufacturer item ID	ManufacturerOrderCode

Two boxes on this tab have no field in the item contract: Purchase gross price and Standard cost. Neither can be written through this interface – see Understanding item costs: standard cost and usage cost.

---

Read the result of a request

GET [AP_base_uri]/ERP/ReceiveItems/GetRequestResult?requestGuid={guid}

Parameter	In	Required	Value
requestGuid	Query string	Yes	The GUID returned by the Create or Update call.

The response reports the status of the request as a whole, and then lists what happened to each item.

Request statuses

Status	What it means
Created	The request arrived but is not in the task queue yet.
Ready	The request is in the task queue, waiting to run.
Scheduled	The request is scheduled to run. This value is in the contract but was not described in earlier documentation, so treat it as not finished yet.
Running	The items are being created or updated.
Completed	Every change in the request has finished. Read the result arrays to see what each item did.
Failed	The request could not be performed.

Result arrays

Array	What it holds
Errors	One entry per validation error, naming the item and the parameter that failed. An item listed here was not written.
CreatedItems	The IDs of the items that were created.
UpdatedItems	The IDs of the items that were updated.

Example result response

{
  "Message": "",
  "Status": "Completed",
  "Result": {
    "Errors": [],
    "CreatedItems": ["5725474"],
    "UpdatedItems": []
  }
}

A request can reach Completed while individual items sit in Errors. Always read the arrays, not just the status.

---

Check the contract on your own installation

The Admin Portal host serves a Swagger page for these interfaces at [AP_base_uri]/ERP/swagger, and the raw definition at [AP_base_uri]/ERP/swagger/docs/v1. It shows the endpoints and the exact item contract that your version exposes, which is the fastest way to settle a question about a field name.

The ReceiveItems group on the Swagger page, expanded to show its three operations.

Tip: Compare the ItemDto definition on that page with the field table above before you file a support case about a field that will not save. A property the contract does not list is dropped without an error.

---

Common confusion

People often think…	But actually…
A 200 response means the items were created.	It means the request was queued. The items exist only once GetRequestResult lists them under CreatedItems or UpdatedItems.
An update has to carry the whole item.	Only Id is required. Fields you leave out stay unchanged – but a field sent as null or an empty string is cleared.
Sending "SpareParts": [] leaves the spare parts alone.	An empty array removes every spare part. Leave the array out of the payload to keep the current list.
The field list on this page is the whole contract.	Your own installation is the authority. Five fields – DispenseUnit, DispenseUnitRatio, PurchaseUnit, PurchaseUnitRatio, and HasSpecialHandling – were missing from this page until this revision, so check the Swagger page for your version.
A misspelled field name causes an error.	It does not. A property the contract does not know is ignored, and the item is written without it. This is why IsQouted silently did nothing.
Items can be deleted through this interface.	There is no delete endpoint for items. Set Status to Obsolete instead.

---

Take action

Ready to make your first call? Start with How to authenticate with the REST API to create an API key and exchange it for a bearer token, then post a single-item array to Create and read the result back with GetRequestResult.

---
