How to read item status with the REST API

What you’ll learn

Read your current stock straight out of CRIBWISE: two REST endpoints return the quantity of every item in every stock, and the condition and location of every serialized item.

Both endpoints are read-only. They take no parameters, return the whole picture in one response, and change nothing in CRIBWISE.

Note: These are the ERP REST interfaces that run on your own Admin Portal address. They are not the paid cloud API on api.cribwise.com – see CRIBWISE REST API – endpoint overview if you are unsure which one you are integrating against.

The two endpoints at a glance

GenerateReport GenerateSerializedItemsReport
Method GET GET
Path [AP_base_uri]/ERP/ItemsStatus/GenerateReport [AP_base_uri]/ERP/ItemsStatus/GenerateSerializedItemsReport
Answers How much of each item is in stock right now? Where is each serial number, and what condition is it in?
Covers Every item assigned to a device, with quantities per stock and per cost allocation. Every serialized item, with one entry per serial number.
Root property ItemStatuses SerializedItemsStatuses
Same data in the Admin Portal Overviews > Item overview – see Item overview dashboard reference. Overviews > Serialized items – see Understanding the serialized item overview.
Watch out for Items with no device assignment are missing from the response, even when they exist in the item list. With no serialized items, the root property is null, not an empty array. See the warning below.

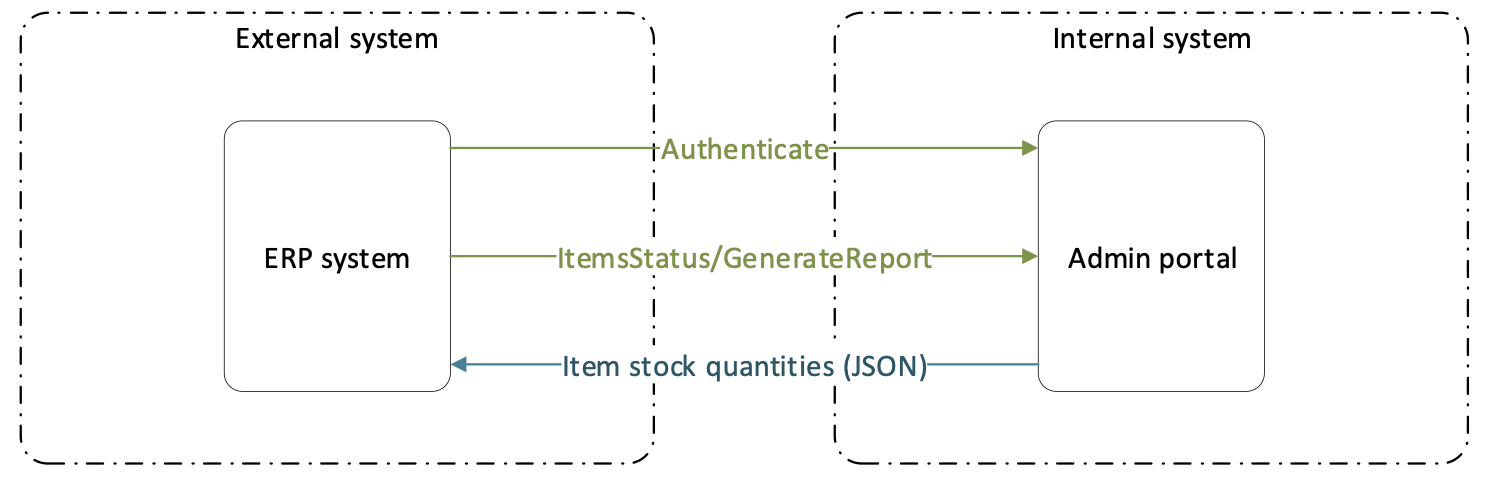

Flow diagram: an ERP system in the external system box authenticates against the Admin portal in the internal system box, calls ItemsStatus/GenerateReport, and receives item stock quantities as JSON.

Both endpoints follow the same shape: authenticate, call, read the JSON.

Before you call

What you need Detail
Base address The host your Admin Portal runs on, without the portal path and without your company name. If you open the portal at https://solutionaddress.com/adminportal/yourcompany, call https://solutionaddress.com/ERP/ItemsStatus/GenerateReport.
An API key Created in the Admin Portal under Administration > Integration > API keys. The key already identifies your company, which is why the endpoint path does not carry it.
An access token Post the key to [AP_base_uri]/adminportalidentity/connect/token with client_id=erp_client, grant_type=client_credentials, and scope=erp_api. The response carries a bearer token and its lifetime in expires_in – currently one hour. Read that field rather than hard-coding the hour. Full walkthrough: How to authenticate with the REST API.
The header on every call Authorization: Bearer {access_token}
A permission, to make the key Creating or reading an API key needs Manage integrations. Without it, Integration does not appear in the Administration menu – see Admin Portal permissions reference.

Important: Pass the API key exactly as the Admin Portal shows it, including the part before the underscore. That prefix identifies your company; a key with the prefix stripped off is rejected with invalid_client.

The interface also publishes its own contract at [AP_base_uri]/ERP/swagger/docs/v1. It confirms that both endpoints are GET and take no parameters, but it declares their responses only as a generic object – so the field tables below are the reference for what actually comes back.

GenerateReport – stock quantities

Returns every item currently held in your stocks, with the quantity in each stock and the quantity picked to each cost allocation.

Request

GET [AP_base_uri]/ERP/ItemsStatus/GenerateReport
Authorization: Bearer {access_token}

There are no query parameters and no request body. The endpoint accepts GET only.

Which items appear

An item is reported only when it is assigned to a device. Open the item, go to the Stock locations tab, and look at Device assignments. An item with an empty device assignment table is left out of the report even when the item itself is active.

The Stock locations tab of item 5724444 in the CRIBWISE Admin Portal with red callouts numbered 1 and 2: 1 marks the Stock locations tab, and 2 marks the two rows of the Device assignments table, TX750 and Device1. Below, the Location assignments table shows physical quantities of 10 and 20.

Two device assignments (2) on the Stock locations tab (1). This item is reported; an item with no rows here is not.

The item’s Status matters as well. Released items are reported. Items set to Defined or Obsolete are out of circulation – they cannot be picked or ordered – see Understanding item statuses.

The General information tab of item 5724444 in the CRIBWISE Admin Portal with red callouts numbered 1 and 2: 1 marks the Item ID field, and 2 marks the Status field set to Released.

The Item ID (1) becomes the Id in the response. The Status (2) decides whether the item is reported at all.

Note: CRIBWISE has five item statuses: Defined, Phase in, Released, Phase out, and Obsolete. If an older integration specification filters this report on a status called Outgoing, it is filtering on a value that does not exist and the API never returns.

Response

A real response from a test company, trimmed to one of its two items:

{
  "ItemStatuses": [
    {
      "Id": "5724444",
      "Name": "CNMG 12 04 08-MM    1125",
      "Description": "T-Max® P, insert for turning",
      "Consumable": true,
      "InStock": true,
      "BellowCriticalLevel": false,
      "ItemStockStatus": "Ok",
      "VendorOrderCode": "CNMG 12 04 08-MM    1125",
      "VendorId": "Sandvik Coromant",
      "VendorName": "Sandvik Coromant",
      "ManufacturerOrderCode": "5724444",
      "ManufacturerId": "Sandvik Coromant",
      "ManufacturerName": "Sandvik Coromant",
      "IsAssembly": false,
      "IsSerialized": false,
      "StockStatuses": [
        { "Id": "Default.Stock.Stock865", "Name": "Stock", "Quantity": 30 }
      ],
      "MachineStatuses": [],
      "ProductionCellStatuses": [],
      "LeadTime": null,
      "IsAtOrderPoint": false
    }
  ]
}

Item fields

Field Type Max length What it holds
Id string 50 The item ID from the Admin Portal.
Name string 100 The item name.
Description string 400 The item description in the default language.
Consumable boolean – True for a consumable item, false for a durable one.
InStock boolean – True when the item has stock on hand.
BellowCriticalLevel boolean – True when the quantity has fallen below the item’s critical level. The field name is spelled Bellow in the API – match it exactly.
ItemStockStatus string – One of Ok, Alert, or Critical. An item on several devices can return more than one value separated by a pipe (|).
VendorOrderCode string 50 The order code the vendor uses for this item.
VendorId / VendorName string 50 / 100 The vendor.
ManufacturerOrderCode string 50 The manufacturer’s order code.
ManufacturerId / ManufacturerName string 50 / 100 The manufacturer.
IsAssembly boolean – True when the item is an assembly.
IsSerialized boolean – True when the item is serialized. Its serial numbers are in the other report.
LeadTime integer – Vendor lead time. null when no lead time is set on the item.
IsAtOrderPoint boolean – True when the quantity has reached the order point.
StockStatuses array – Quantity per stock. See below.
MachineStatuses / ProductionCellStatuses array – Picked durable items held at a cost allocation. Empty when nothing is picked to one.

If item custom fields are defined, they arrive as extra properties named after the escaped custom field name, each a string of up to 400 characters. Read them by name rather than by position – adding a custom field changes what the response contains.

How the quantities are grouped

StockStatuses holds one entry per stock, not one per device. An item spread across two devices in the same stock arrives as a single entry whose Quantity is the sum.

The Item overview in the CRIBWISE Admin Portal with red callouts numbered 1 to 3: 1 marks the item ID 5724444, 2 marks the green State bar and check icon in the State column, and 3 marks the two expanded child rows TX750 and Device1 that hold 20 and 10 pieces of the 30 shown on the item row.

The item (1) holds 30 pieces, split across two devices (3) – 20 on TX750 and 10 on Device1. The API reports one stock entry of 30. The State column (2) is the ItemStockStatus.

Field Type Max length What it holds
Id string 50 The stock identifier, for example Default.Stock.Stock865.
Name string 100 The stock name as shown in the Admin Portal.
Quantity integer – Total quantity of the item in that stock, across every device in it.

Entries in MachineStatuses and ProductionCellStatuses follow the same shape and cover durable items that are picked and currently sitting at a cost allocation rather than in a device. Both arrays are empty when nothing is picked to one. The Admin Portal shows the same thing under Overviews > Picked items locations.

What Ok, Alert, and Critical mean

Value When it is returned
Ok Quantity in stock is above 120% of the threshold.
Alert Quantity in stock is between 120% and 100% of the threshold.
Critical Quantity in stock is below 100% of the threshold.

The threshold comes from the order point and the critical quantity. For durable items the quantity in stock excludes picked items and is compared with the minimum quantity. For an item on several devices, the worst state wins. The same logic drives the State column described in Item overview dashboard reference.

GenerateSerializedItemsReport – serial numbers

Returns every serialized item in the system, and for each one a list of its instances – the individual serial numbers – with the location, condition, and service state of each.

Request and empty response

GET [AP_base_uri]/ERP/ItemsStatus/GenerateSerializedItemsReport
Authorization: Bearer {access_token}

As with the other endpoint there are no parameters, and only GET is accepted. When the company has no serialized items, the whole response is this:

{ "SerializedItemsStatuses": null }

Warning: The empty result is null, not []. Code that loops straight over SerializedItemsStatuses throws on a company that has no serialized items yet. Check for null first.

Response with data

Each entry describes one serialized item and carries its instances:

{
  "SerializedItemsStatuses": [
    {
      "Id": "string",
      "Name": "string",
      "Description": "string",
      "VendorId": "string",
      "VendorName": "string",
      "VendorOrderCode": "string",
      "ManufacturerId": "string",
      "ManufacturerName": "string",
      "IsAssembly": true,
      "Instances": [
        {
          "SerialNumber": "string",
          "InstanceStatus": "New",
          "StockId": "string",
          "StockName": "string",
          "DeviceId": "string",
          "DeviceName": "string",
          "StorageDeviceName": "string",
          "AvailabilityState": "InDevice",
          "StockLocationId": "string",
          "StockLocationName": "string",
          "LoanTimeEnds": "2017-04-03T12:36:28Z",
          "ServiceInformation": {
            "ServiceTriggerDate": "2017-04-03T12:36:28Z",
            "TimePickedRemaining": 0,
            "NumberOfPicksRemaining": 0,
            "LastService": "2017-04-03T12:36:28Z",
            "InActiveServiceOrder": true
          }
        }
      ]
    }
  ]
}

Serialized item fields

Field Type Max length What it holds
Id string 50 The item ID.
Name string 100 The item name.
Description string 400 The item description.
VendorId / VendorName string 50 / 100 The vendor.
VendorOrderCode string 50 The vendor’s order code.
ManufacturerId / ManufacturerName string 50 / 100 The manufacturer.
IsAssembly boolean – True when the item is an assembly.
Instances array – One entry per serial number. See below.

Instance fields

Every instance field has a matching column in the Admin Portal, which is the quickest way to sanity-check what an integration receives.

Field Type Max length Column in Serialized item overview
SerialNumber string 50 Serial number
InstanceStatus string – Condition
StockId / StockName string 50 / 100 Part of Location
DeviceId / DeviceName string 50 / 100 Part of Location
StorageDeviceName string 100 Part of Location
StockLocationId / StockLocationName string 50 / 150 The location address in Location
AvailabilityState string – Location shows In production or In service instead of a place when the instance is out
LoanTimeEnds date and time – Loan time ends
ServiceInformation.ServiceTriggerDate date and time – Service will trigger at
ServiceInformation.TimePickedRemaining integer – Time picked remaining
ServiceInformation.NumberOfPicksRemaining integer – Remaining # of picks
ServiceInformation.LastService date and time – Last service
ServiceInformation.InActiveServiceOrder boolean – No column – true while the instance sits on an open service order

Condition and availability values

InstanceStatus Shown in the Admin Portal as What it means
New New Not used yet. Set when the instance is first stocked.
Used Used Picked and returned as used.
ForService For service Returned for service, or flagged automatically by a service rule.
Refurbished Refurbished Restocked from a service order.
Scrap Scrap Scrapped by a user, or automatically by a loan time or scrap rule.
InAssembly In assembly Picked to build an assembly composition.

Conditions are never set by hand – they follow from picks, returns, restocks, and scrapping. AvailabilityState answers a different question, namely where the instance is: InDevice, InProduction, InService, or InAssembly. For the full picture see Understanding the serialized item overview.

Responses other than 200

Status Body What went wrong Fix
401 {"Message":"Authorization has been denied for this request."} The Authorization header is missing, malformed, or carries an expired or invalid token. Fetch a fresh token and send it as Authorization: Bearer {access_token}.
405 {"Message":"The requested resource does not support http method 'POST'."} The call used POST, PUT, or DELETE. Both endpoints are GET only.
404 "No action was found on the controller 'ItemsStatus'" The path is misspelled – a stray space, a wrong action name, or a company name inserted before /ERP/. Check the path against the table at the top of this article. The base address carries no company name.
400 {"error":"invalid_client"} from the token endpoint The API key was rejected before any report call was made. Send the key exactly as the Admin Portal shows it, prefix included, and check the key still exists and has not passed its expiration date.

Common confusion

People often think… But actually…
The report shows everything in the item list. Only items assigned to a device are reported. An item with no device assignment is missing from the response even though it exists.
ItemStockStatus is OK. The API returns Ok with a lowercase k. A case-sensitive comparison against OK never matches.
An empty serialized report is an empty array. It is null. Test for null before iterating.
StockStatuses breaks the quantity down per device. It breaks it down per stock. Two devices in one stock arrive as one entry holding the combined quantity.
The serialized report carries purchase information. The instance fields cover location, condition, and service only – no purchase fields are defined. For order data use the purchase order endpoints in ERP REST Purchase orders.
These endpoints have to be switched on first. They are always active. What you need is a valid API key.
A report call returns a request GUID like the create endpoints do. No. These are read endpoints, so the data comes back in the response itself – there is nothing to collect afterwards.

Take action

Ready to make the call? Start with How to authenticate with the REST API to create a key and exchange it for an access token, then GET /ERP/ItemsStatus/GenerateReport and compare what you get with Overviews > Item overview in the Admin Portal.
