What you’ll learn
How a Lista LPC or LDC cabinet is set up as a storage device in CRIBWISE: the settings it needs, one module per drawer, and the location structure each drawer type supports.
Storage device settings
| Setting | Value |
| Type | Location controlled |
| Manufacturer | Lista |
| Port number | Set according to the physical connection to the device |
| Configuration file | If one is available, import it to create modules and locations automatically |
Module structure
- One drawer is one module.
- Each module has a unique hardware address.
- For LDC drawers, set the LDC flag to true on module level. Leave it false for LPC.
Stock location structure
- First dimension: 1-1.
- Second dimension: 1 to the number of locations in the module.
- For LDC drawers both dimensions can be set as needed.
- Locations are defined separately for each module.

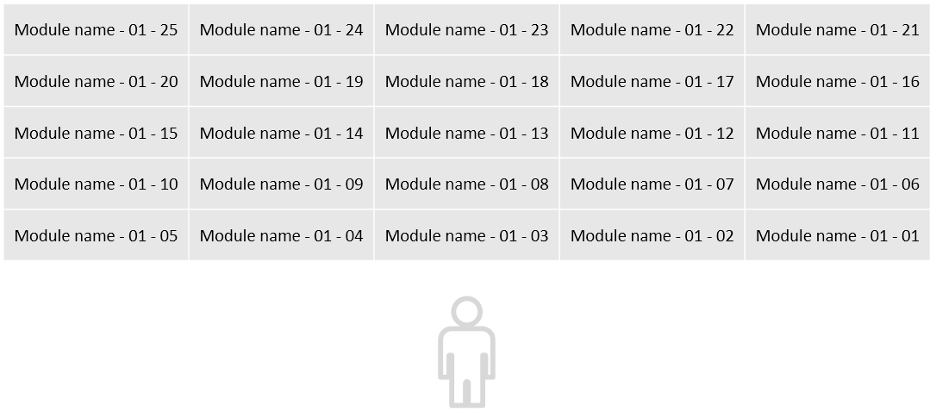

How locations are laid out in a drawer.
Available drawer configurations
| Drawer type | First dimension | Second dimension | Is controlled |
| LPC 6×9-54-75 | 1-1 | 1-54 | No |
| LPC 6×8-48-75 | 1-1 | 1-48 | No |
| LPC 6×7-42-75 | 1-1 | 1-42 | No |
| LPC 6×6-36-75 | 1-1 | 1-36 | No |
| LPC 6×4-24-75 | 1-1 | 1-24 | No |
| LPC 6×3-18-75 | 1-1 | 1-18 | No |
| LPC 6×2-12-75 | 1-1 | 1-12 | No |
| LPC 4×9-36-75 | 1-1 | 1-36 | No |
| LPC 4×4-16-75 | 1-1 | 1-16 | No |
| LPC 2×9-18-75 | 1-1 | 1-18 | No |
| LPC 2×4-8-75 | 1-1 | 1-8 | No |
| LPC 1×6-6-75 | 1-1 | 1-6 | No |
| LPC 6×6-36-100 | 1-1 | 1-36 | No |
| LPC 6×4-24-100 | 1-1 | 1-24 | No |
| LPC 6×3-18-100 | 1-1 | 1-18 | No |
| LPC 6×2-12-100 | 1-1 | 1-12 | No |
| LPC 4×4-16-100 | 1-1 | 1-16 | No |
| LPC 2×4-8-100 | 1-1 | 1-8 | No |
| LPC 1×4-4-100 | 1-1 | 1-4 | No |
| LPC 4×4-16-150 | 1-1 | 1-16 | No |
| LPC 2×4-8-150 | 1-1 | 1-8 | No |
| LPC 2×2-4-150 | 1-1 | 1-4 | No |
| LPC 1×4-4-150 | 1-1 | 1-4 | No |
| LDC (Drawer control) | Custom | Custom | Yes |
Common confusion
| People often think… | But actually… |
| LPC and LDC drawers are configured the same way. | The LDC flag must be true for LDC drawers and false for LPC, and only LDC drawers are controlled. |
| Locations must always be created by hand. | When a configuration file is available, importing it creates the modules and locations for you. |
| The second dimension can be anything on an LPC drawer. | It runs from 1 to the number of locations in that drawer type – see the table above. |
Take action
Ready to add the cabinet? Create the device and its storage device in the Admin Portal – see How to configure storage devices.
