What you’ll learn
How an AutoCrib VX500 is set up as a storage device in CRIBWISE: the settings it needs, the modules created for its columns, and how stock locations come from the configuration Excel.
Storage device settings
| Setting | Value |
| Type | Location controlled |
| Manufacturer | AutoCrib VX500 |
| IP address | The IP address of the controller. Default: 192.168.255.2 |
Module structure
- Each column is a separate module.
- 6 modules are created during the first save of the storage device: 3 rotating and 3 static columns.
Stock location structure
- Locations are created by importing the VX500 configuration Excel. The same file template is used to update the location structure later.
- Each column has 15 levels. A location on one level can span several levels above it.
- Each column on each level can be split into one or more locations of the same size.
- Levels in rotating columns (11X, 12X, 13X) can be split to 1, 1/2, 1/3, 1/4, 1/6 or 1/12 of the full column size, giving 1, 2, 3, 4, 6 or 12 locations on that level.
- Levels in solid columns (101, 102, 103) can be split to 1/2 or 1/3 of the full column size, giving 1 or 2 locations on that level.
Modules as they appear for a VX500.

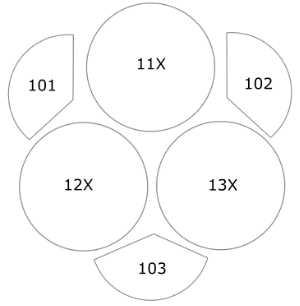

Column and level layout.

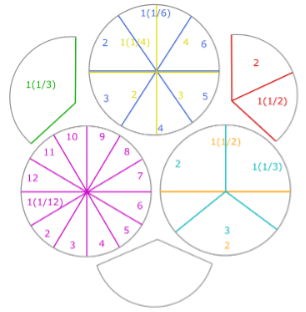

How a level is split into locations.
Common confusion
| People often think… | But actually… |
| Locations are created by hand in CRIBWISE. | They come from the VX500 configuration Excel, and the same template is used for later updates. |
| All columns can be split the same way. | Rotating columns support 1, 1/2, 1/3, 1/4, 1/6 and 1/12 splits; solid columns only 1/2 and 1/3. |
| The 6 modules must be created manually. | They are created automatically on the first save of the storage device. |
Take action
Ready to add the cabinet? Create the device and its storage device in the Admin Portal – see How to configure storage devices.
